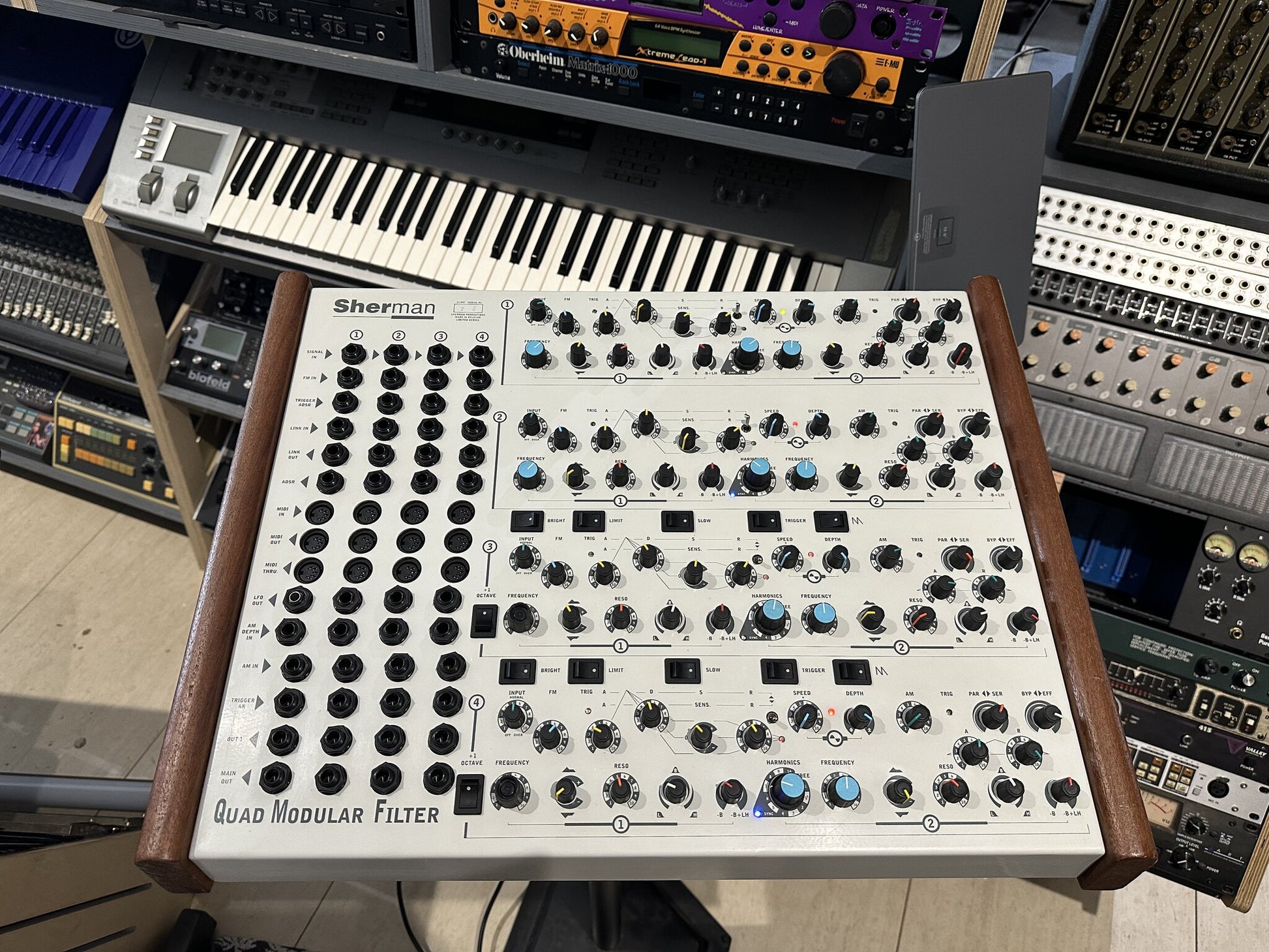

This is the holy grail of Sherman gear. The Quad Modular Filter takes the cult Filterbank, the snarling, screaming, envelope-following distortion filter that producers worship, and stacks four of them into one fully patchable, wood-panelled monster. Sherman built a limited series of 100 for the world, and this is number 78, stamped on the front plate above the words MADE IN BELGIUM LIMITED SERIES. Four independent filter sections, each with its own input and MIDI channel, patch together into a ferocious 96dB mega-filter, or run four separate sources in parallel like the most dangerous mixing desk ever made. The rear panel carries a screaming face and the warning DANGEROUS FREQUENCY RANGE, WATCH YOUR SPEAKERS. Sherman were not joking.

FEATURES & PROS:

• Four Filterbanks In One: Four independent Sherman filter and distortion engines, numbered 1 to 4, each with two filter sections.
• Number 78 Of 100: A limited series of 100 units worldwide. The front plate reads 1997, SERIAL No 78, SHERMAN PRODUCTIONS, MADE IN BELGIUM, LIMITED SERIES.
• Mega-Filter Mode: Link all four banks for a brutal 96dB combined slope, or process four separate sources at once.
• Full Modular Control: Independent MIDI channels 1 to 4, MIDI In, Out and Thru on DIN, plus signal, FM, AM, trigger and link jacks per bank and LFO outputs for wild patching.
• Deep Per-Bank Editing: Frequency, Resonance, Harmonics, Bright, Limit, Input, FM, full ADSR, envelope follower Sens and Speed, LFO Depth, a Parallel/Series routing switch, Bypass/Effect and a +1 Octave shift.
• Everything From Subtle To Feral: Low pass, band pass, high pass and notch at 24dB per octave, with the Sherman drive that turns a plain drum loop into an event.
• Belgian Boutique: Hand-built by Sherman Productions with the classic mahogany-toned wooden end cheeks.

SPECIFICATIONS

• Model: Sherman Quad Modular Filter (QMF)
• Type: Quad analogue multimode filter and distortion processor, four Filterbanks in one chassis
• Front plate date: 1997
• Serial number: 78
• Rarity: Limited series of 100 units worldwide
• Filter sections: 8 total, two per bank, 24dB per octave four-pole low pass / band pass / high pass / notch with resonance
• Filter slope: Up to 96dB with all four banks linked
• Modulation: ADSR envelope and envelope follower per bank, four LFOs, ADSR VCA
• Connections: Signal In, FM In, AM In, AM Depth In, Trigger AR, Link In, Link Out, ADSR, LFO Out, Out 1 and Main Out per bank, plus MIDI In, Out and Thru
• Control: Independent MIDI channels 1 to 4, CV and Gate in and out
• Format: Desktop, wooden end cheeks
• Power: IEC mains inlet with fuse, CE marked
• Origin: Sherman Productions, Belgium
• Condition: Used and functional. Light surface marking to the white panel consistent with age and studio use.
